EPS-FR vs PIR Insulated Panels: Which Is Right for Your Cool Room in 2026?

Choosing the right panel type is one of the most important decisions Sydney businesses face when planning a cool room build in 2026. Both EPS-FR and PIR panels are widely used for cool rooms, freezer rooms, and food processing facilities across NSW, but they differ in thermal performance, fire rating, thickness, and cost. Understanding those differences before you commit can save money and prevent compliance headaches down the track.

What Are EPS-FR and PIR Insulated Panels?

EPS-FR (Expanded Polystyrene, Fire Retardant) panels use a polystyrene core treated with a fire retardant. They are lightweight, cost-effective, and straightforward to install, suiting applications where budget is a priority and fire performance requirements sit at a standard level.

PIR (Polyisocyanurate) panels use a higher-density foam core delivering superior thermal efficiency. They can achieve the same R-value as EPS-FR at a reduced panel thickness, freeing up usable floor space in tighter facilities. PIR panels also carry Factory Mutual (FM) approval to FM 4880, meeting stringent fire performance standards for unlimited-height wall construction.

How Do EPS-FR and PIR Panels Compare for Cool Rooms?

| Feature | EPS-FR | PIR |

|---|---|---|

| Thermal performance | Good | Superior |

| Fire resistance | Fire-retardant treated | FM 4880 approved |

| Panel thickness needed | Greater | Reduced |

| Suitable temperatures | Cool rooms, freezers | Down to -40°C |

| Cost | Lower upfront | Higher upfront |

| Ideal applications | Cool rooms, food production, partitions | Food processing, pharma, deep freeze, clean rooms |

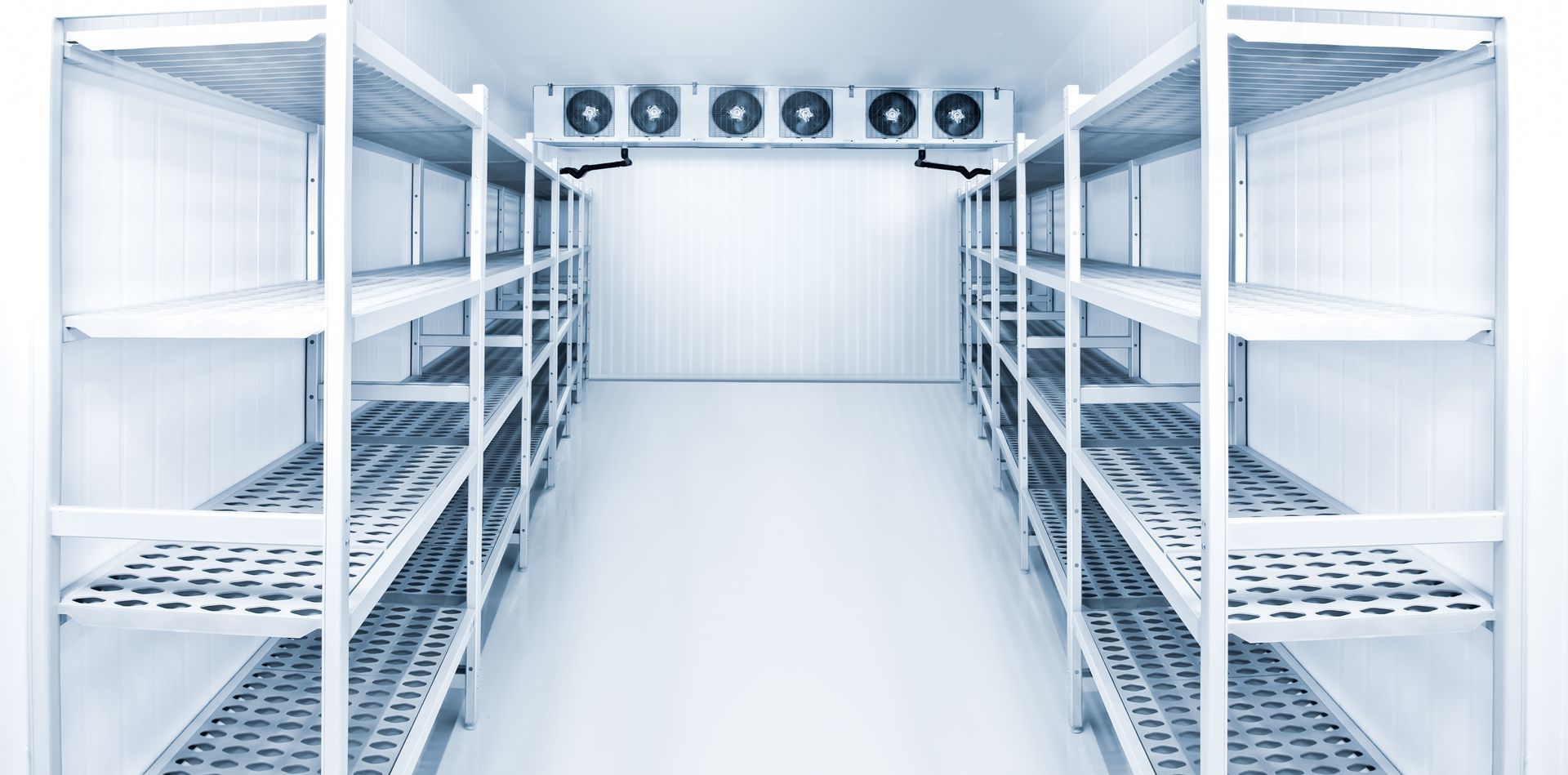

Cool Rooms and General Cold Storage

EPS-FR panels are a practical choice for standard cool rooms, general food retail storage, and temporary or permanent partitioning. They are locally manufactured, which can mean faster lead times for Sydney projects. Typical uses include wall and ceiling panels in cool rooms, freezer rooms, clean rooms, and food production spaces.

Food Processing, Pharmaceutical, and Deep-Freeze Applications

PIR panels suit food processing facilities, pharmaceutical clean rooms, biotechnology environments, and deep-freeze storage at very low temperatures. Their hygienic, fibre-free surface suits hygiene-critical spaces, and FM-approved fire performance is often required by insurers for larger commercial facilities.

What About Australian NCC Compliance?

FM-approved PIR panels meet the fire performance standards often required by insurers for tall, large-scale cool room construction. For standard commercial applications, EPS-FR panels can satisfy NCC requirements while keeping costs manageable. Always confirm your specific obligations with your builder before selecting a panel type.

How to Choose Based on Application and Budget

Choose EPS-FR for a cost-effective panel suited to standard cool rooms, food retail spaces, or temporary partitions with straightforward fire requirements. Choose PIR if your facility must meet FM fire standards, requires reduced panel thickness, operates at very low temperatures, or falls under pharmaceutical or food processing hygiene regulations.



Sydney operators across Western Sydney logistics precincts, inner-city hospitality venues, and regional distribution centres may face different code and insurance requirements. Speaking with qualified Insulated Panel Builders serving Sydney early in the design phase ensures the right panel type is specified before construction begins.
